| Quantity: | |
|---|---|

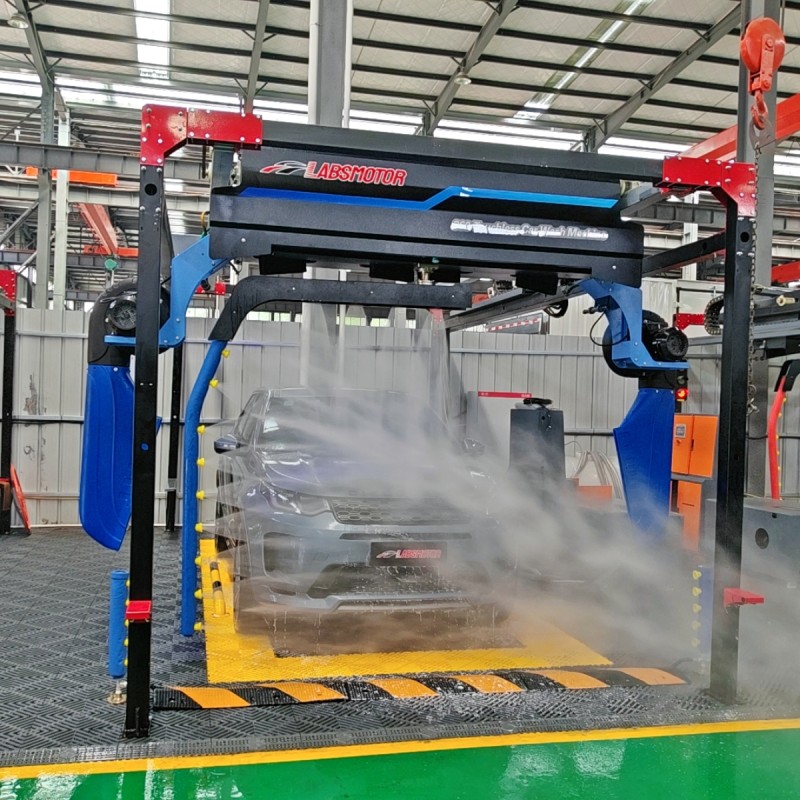

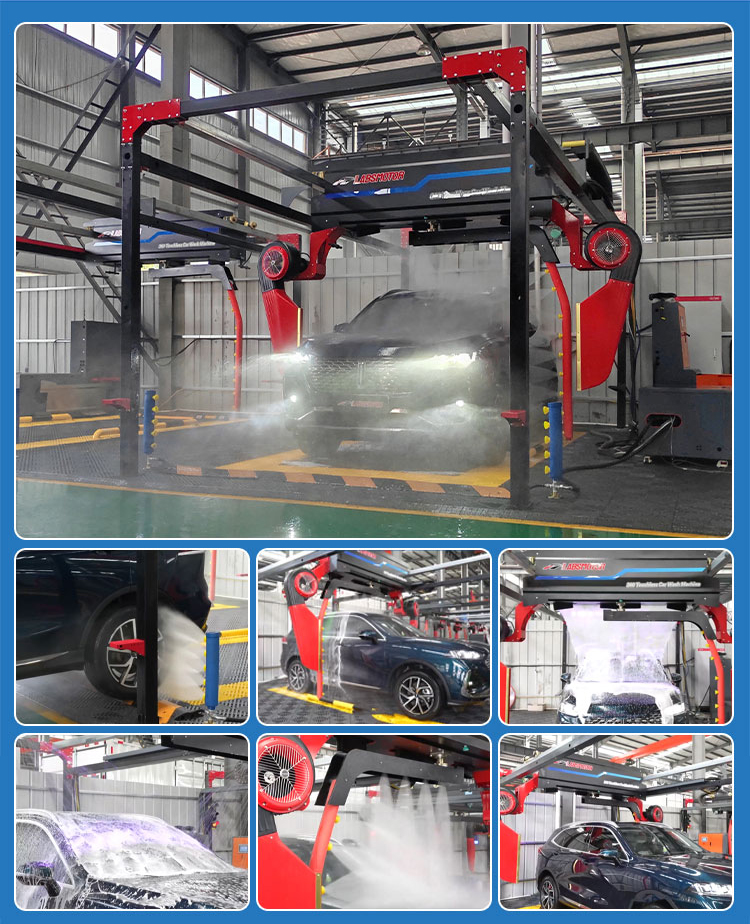

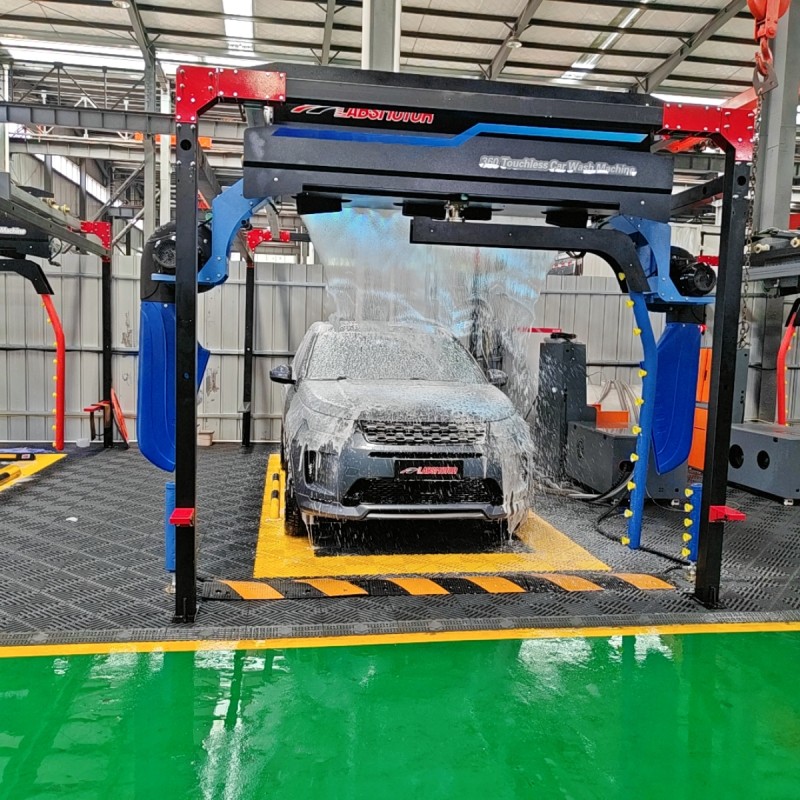

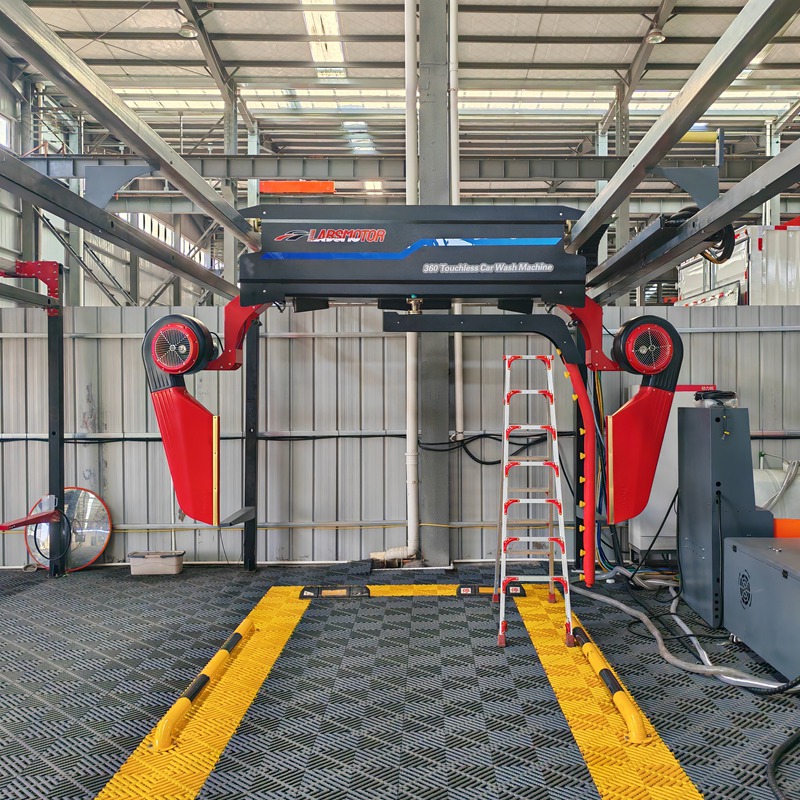

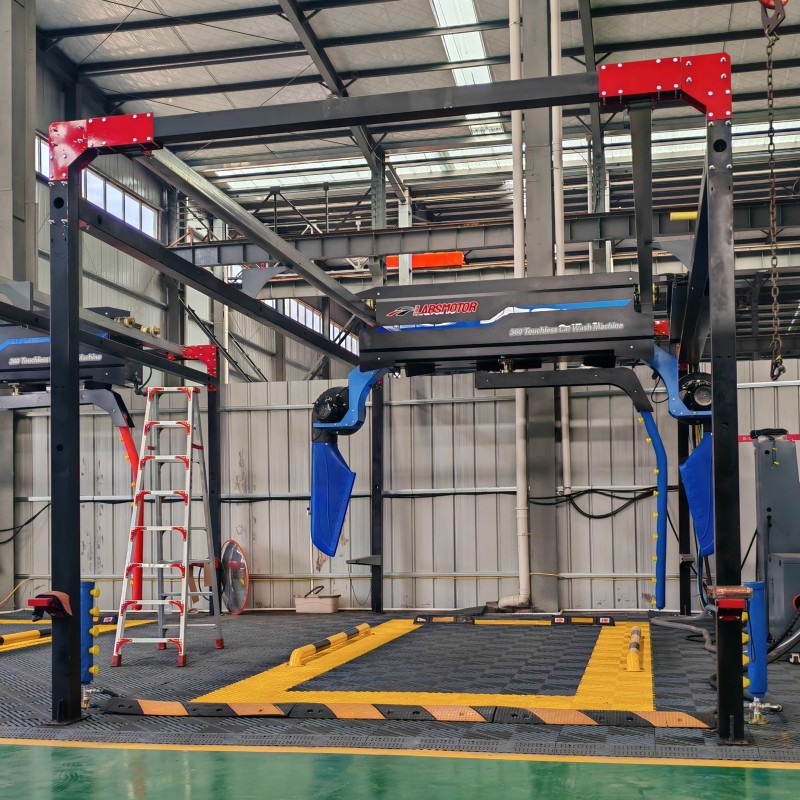

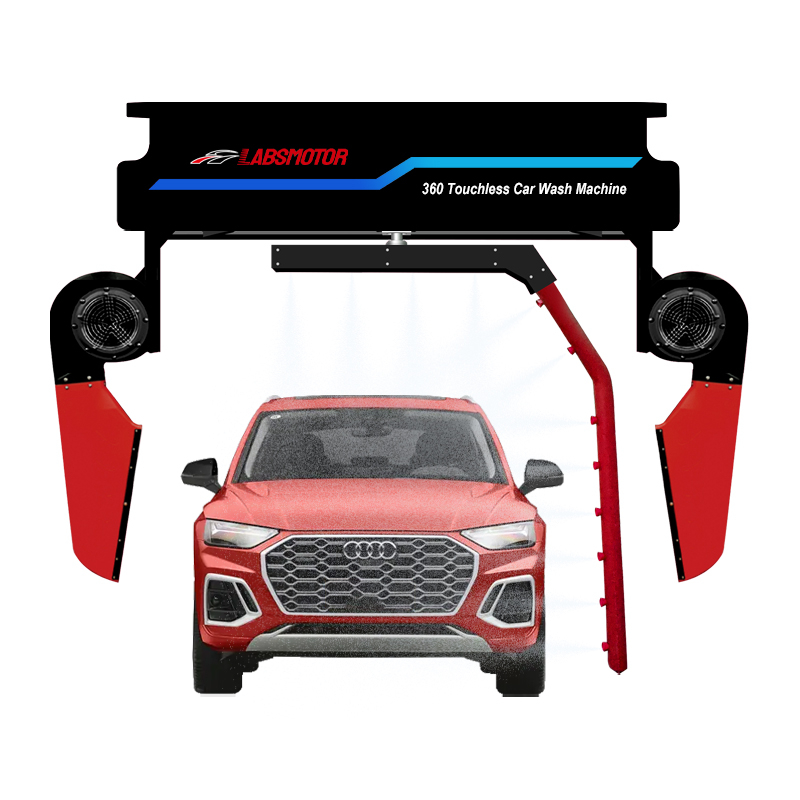

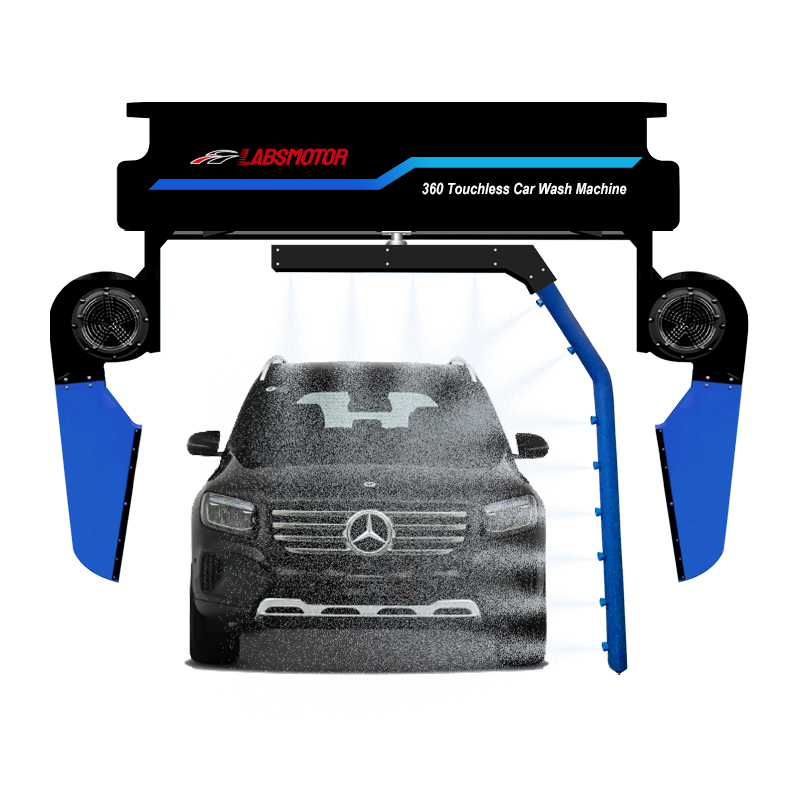

Product Name | Labsmotor Toucless Car wash Machine | |
Model | LM-06Z | LM-04 |
Warranty | 3 years warranty for whole machine | 3 years warranty for whole machine |

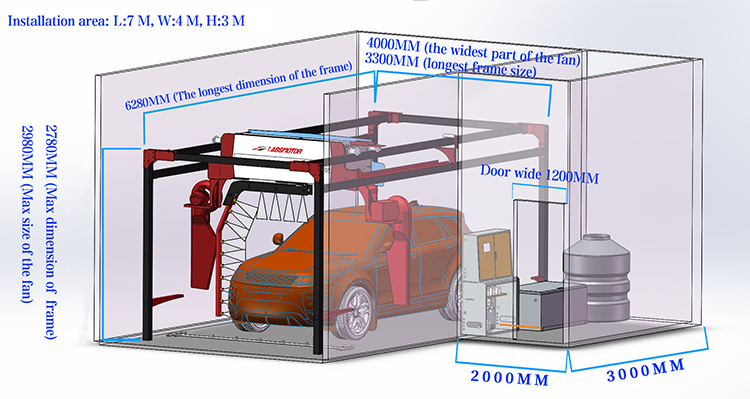

Standard Machine Installation Size | L*W*H=7000*3400*3200mm | L*W*H=7000*3500*3200mm |
Max. Car Size | L*W*H=5500*2200*2000mm | L*W*H=5500*2200*2000mm |
Shampoo Consumption | 10ml- 40ml/car | 10ml- 40ml/car |
Foam Consumption | 10ml- 40ml/car | 10ml- 40ml/car |
Water Wax Consumption | 10ml- 40ml/car | 10ml- 40ml/car |
Water Consumption | Standard wash 94L/car, Fine wash120L /car | Standard wash 94L/car, Fine wash120L /car |
Electricity Consumption | Standard wash 0.52kwh/car, Fine wash 0.99kwh /car | Standard wash 0.52kwh/car, Fine wash 0.99kwh /car |
Time Consumption | 3-8min/car, 8 hours 100 cars, 6 kinds of car wash models can be DIY | 3-8min/car, 8 hours 100 cars, 6 kinds of car wash models can be DIY |
Power Supply Requirements | AC380V/220V/50Hz/3Ph/35KW, 12smm copper cable | AC380V/220V/50Hz/3Ph/35KW, 12smm copper cable |
Air Switch | 80A air switch | 80A air switch |
Water Pump Motor Power | 15KW/80Bar-100Bar working pressure | 15KW/80Bar-100Bar working pressure |
Fan Motor Power | 6 pcs 5.5KW blowers total 33KW/ Pressure 15000pa/ Air flow 28000CBM/H | 4 pcs 5.5KW blowers total 22KW/ Pressure 1200pa/ Air flow 21000CBM/H |
Longitudinal Motor Power | 0.37KW digital drive motor | 0.37KW digital drive motor |
Transversal Motor Power | 0.75KW digital drive motor | 0.75KW digital drive motor |
Rotary Motor Power | 0.75KW digital drive motor | 0.75KW digital drive motor |
Chemical System | 0.75KW | 0.75KW |
Central Processing Unit PLC | IndustrialPLCembeddedcentraliprocessor+dual-coresystem | IndustrialPLCembeddedcentraliprocessor+dual-coresystem |
Drive System | Promise frequency digital drive | Promise frequency digital drive |
Detection System | Smathree-dimensional monitoring system | Smathree-dimensional monitoring system |
Sensing System | Ultrasound+ Absolutevalueofthedig talencoder | Ultrasound+ Absolutevalueofthedig talencoder |
System language | English ,Chinese,Russian, French, Spanish, Portuguese, Arabic (Can be customized) | English ,Chinese,Russian, French, Spanish, Portuguese, Arabic (Can be customized) |
Q: Are you a car wash machine trader or manufacturer?
A: Yes, we are a manufacturer of fully automatic car washing machines in China.
Our brand is Labsmotor. So we have competitive prices and can provide spare parts at any time.

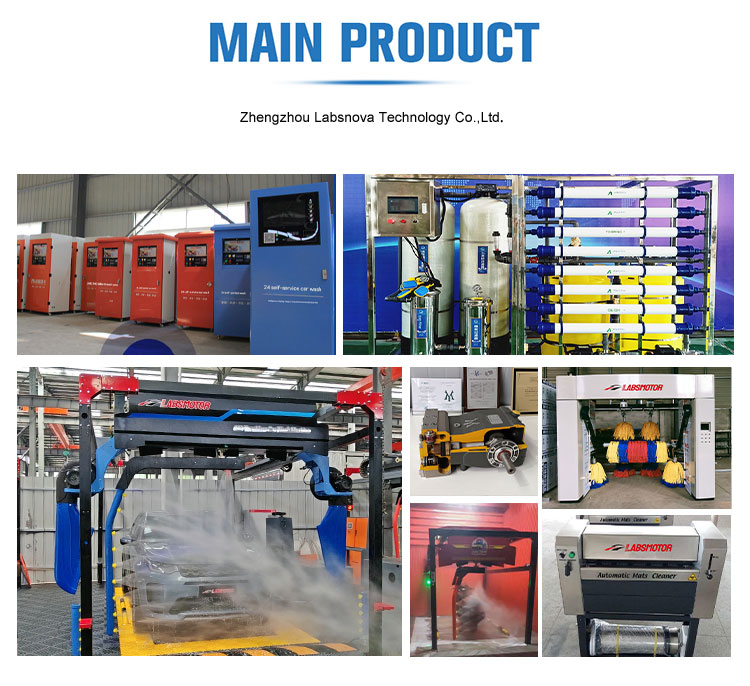

Q: What type of car wash machine can you produce?
A: We can produce overturning car washing machines, tunnel car washing machines, and contactless car washing machines. In addition, customization can be made according to your requirements.
Q: Can the color and appearance be customized?
A: Yes, of course, they can be customized. Just tell me what color and appearance drawings you need, and we can make them according to your requirements.
Q: Can I write my brand name on the machine instead of your brand name?
A: Yes, we can stick your brand name on the machine according to your requirements.

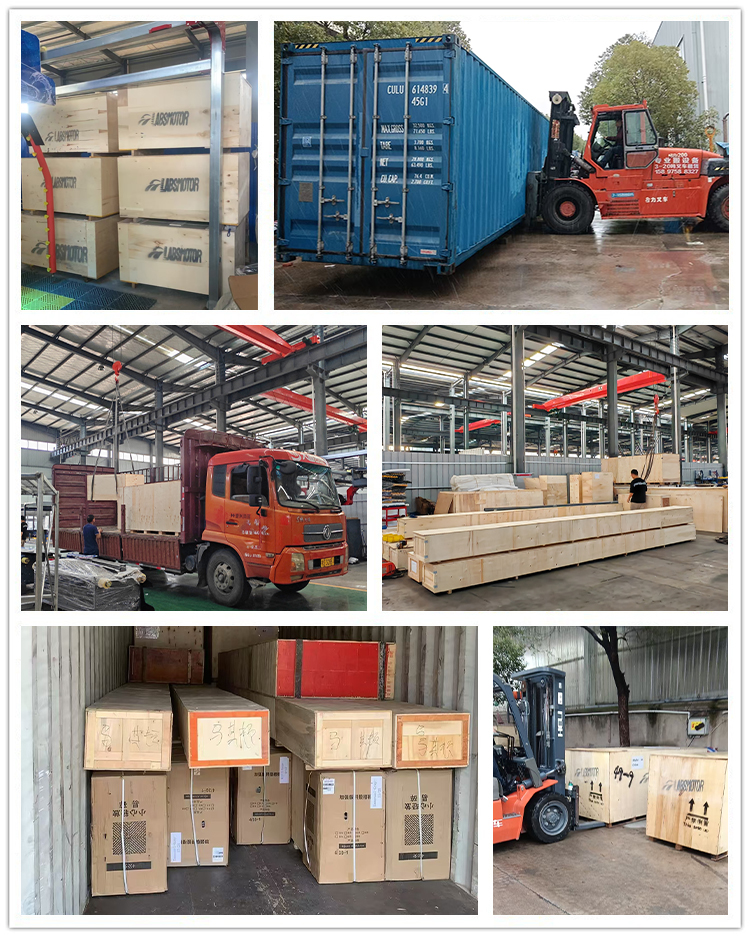

Q: What is the delivery time?
A: The time for the S360 fully automatic car wash machine is within 7 days after receiving the advance payment, depending on the type you need.
Q: What about land construction? How long will it take?
A: We can provide the basic drawings, which will take approximately 2 days.
Q: How to install the machine? And how to carry out daily maintenance?
A: We can provide installation drawings and instructional videos. Engineers can also install it on-site.We can provide you with a
maintenance manual.
Q: What is the warranty period and after-sales service situation?
A: Our automatic car wash machine has a warranty period of 3 years (100000 times). During the warranty period, if there are any problems with the machine, we can provide free parts.
Q: Why is your machine control system PCL and everything else MCU? What's the difference?
A: PCL technology is more advanced, performance is more stable, and maintenance is easier. The important thing is that the service life is much longer than MCU.
